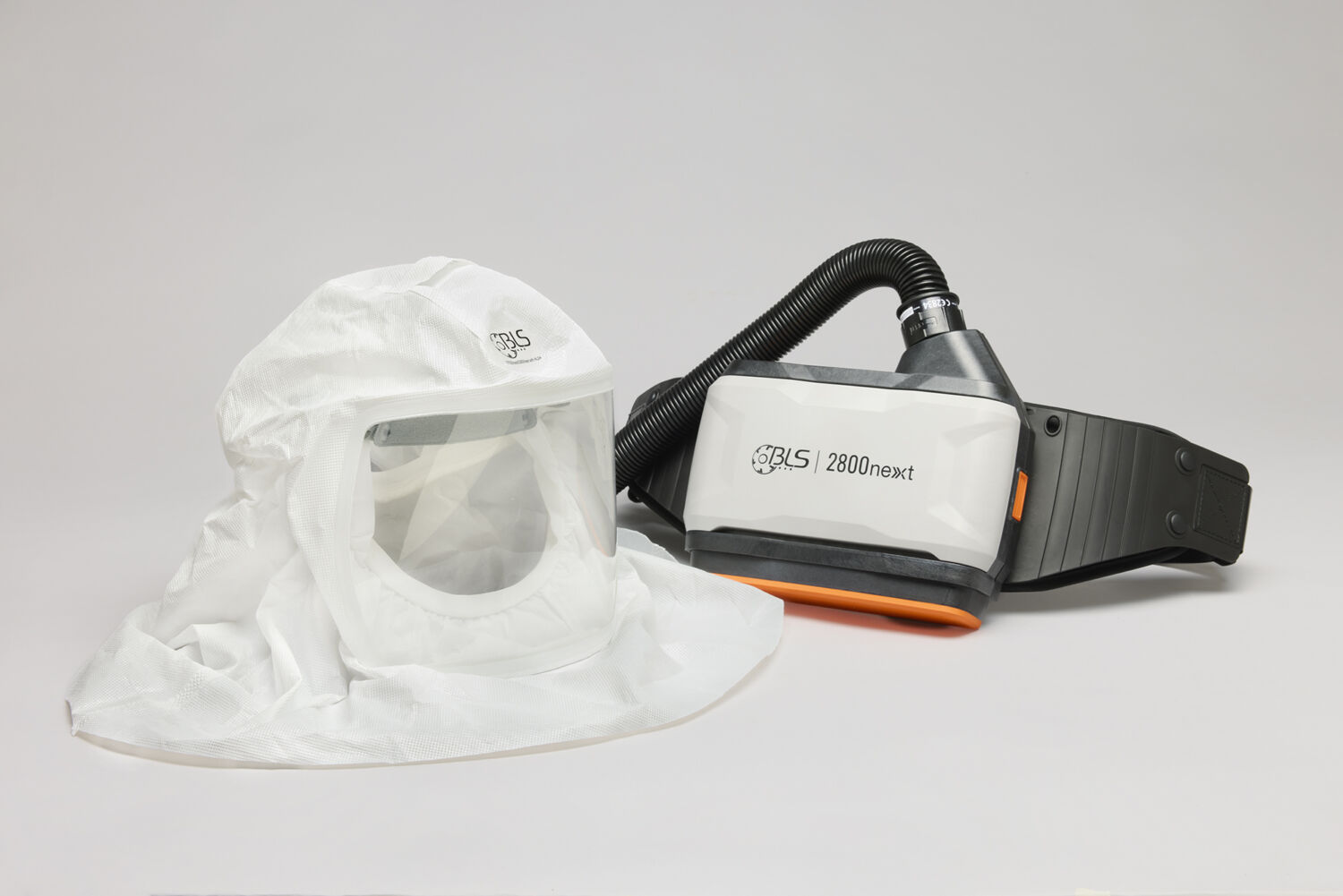

PAPR BLS 2800next

Powered air purifying respirators with dust and combined filters suitable for use in ATEX environments
Contacts
More information
Sectors
Industrial
Medical
Features
Series models
Documentation
Powered air purifying suitable for use in potentially explosive atmospheres

Powered air purifying suitable for use in potentially explosive atmospheres

This PAPR is a TH3-classified assisted ventilation system. It can be used with dust filters or combined filters.

Filters (not included in the kit)

Filters (not included in the kit)

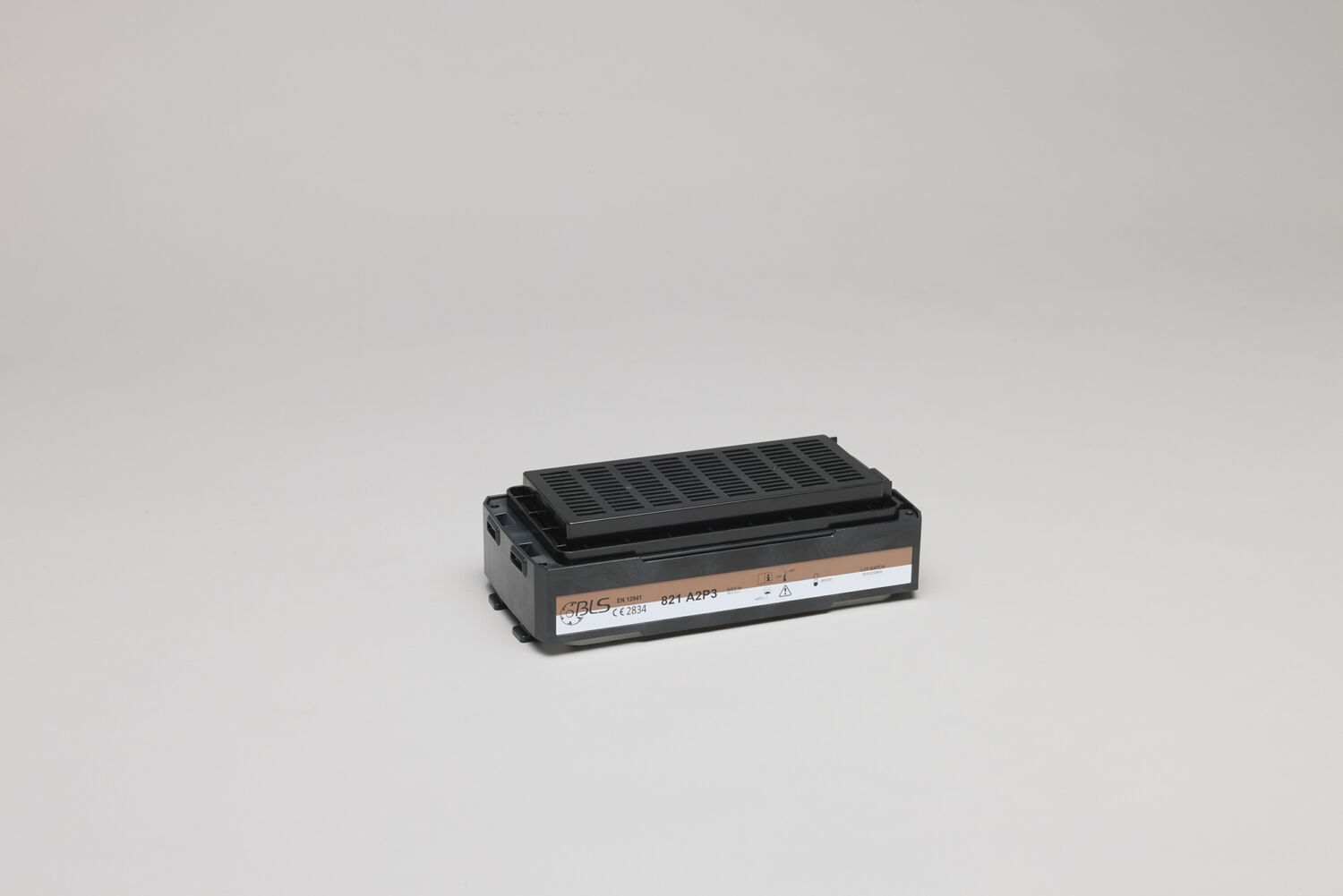

BLS 2800next can be combined with P3 R SL dust filters (BLS 802), as well as A2P3 (BLS 821) and ABEK1P3 (BLS 822) combination filters.

Airflow

Airflow

The motor draws in ambient air through the filter and delivers purified air to the face via a breathing tube. There are three air flow levels available:
- Standard flow: 170+lpm;
- Intermediate flow: 190+ lpm;
- High flow: 210+lpm
The selected air flow is indicated by three LEDs that light up depending on the flow in use.
Battery

Battery

The device is designed to be used with a rechargeable lithium-ion battery.

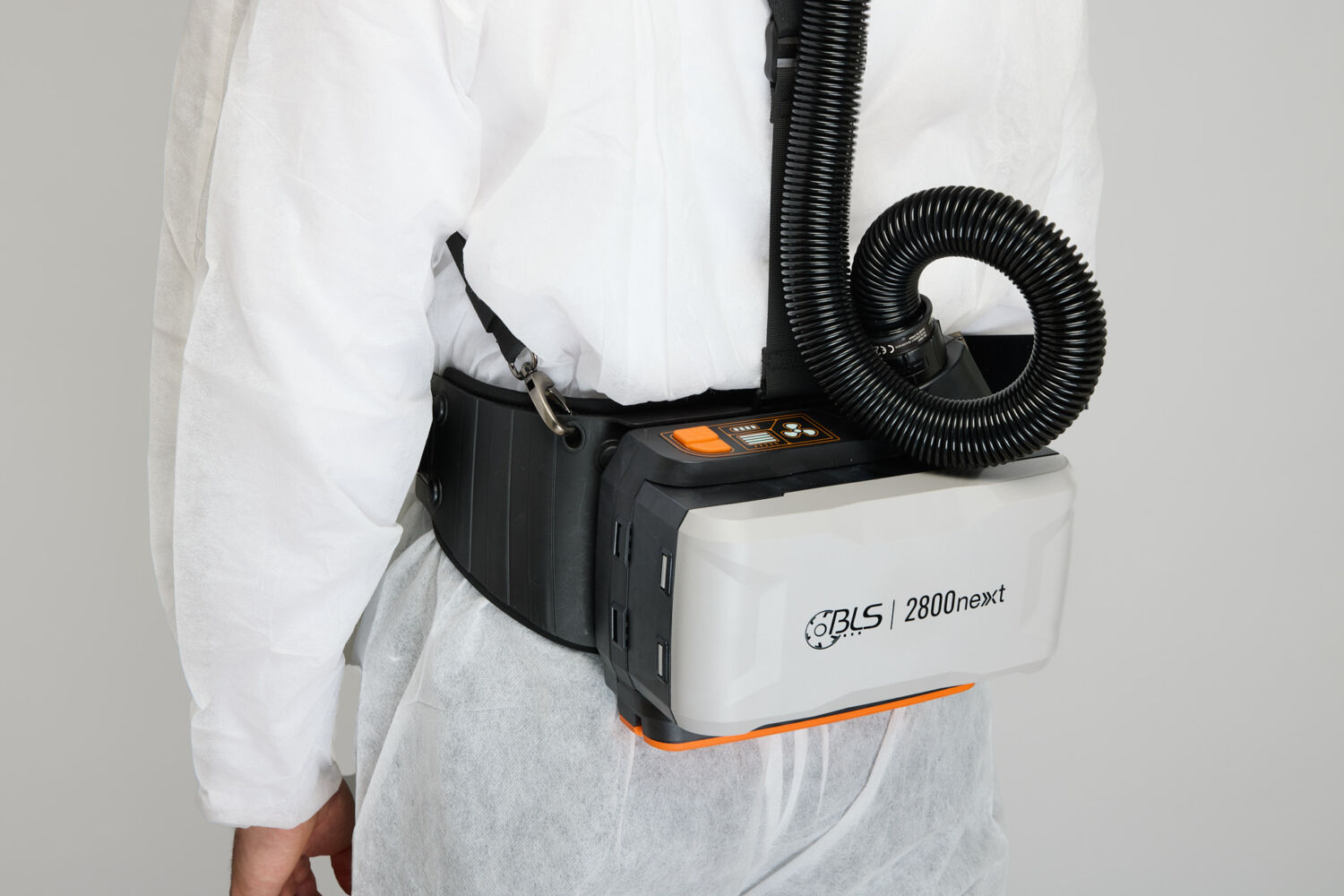

Adjustable belt

Adjustable belt

The polyester and ABS belt ensures optimal positioning around the waist and a secure fit, while the padded support provides maximum comfort.

Alarms

Alarms

There is a filter clogging indicator. The more LED segments light up, the more saturated the filter is. When the three LEDs light up intermittently, an audible indicator combined with vibration signals the need to replace the filter (for dust filters). Gas filters should be replaced when the smell of the substance you are protecting against is detected. The display also features a battery charge status indicator.

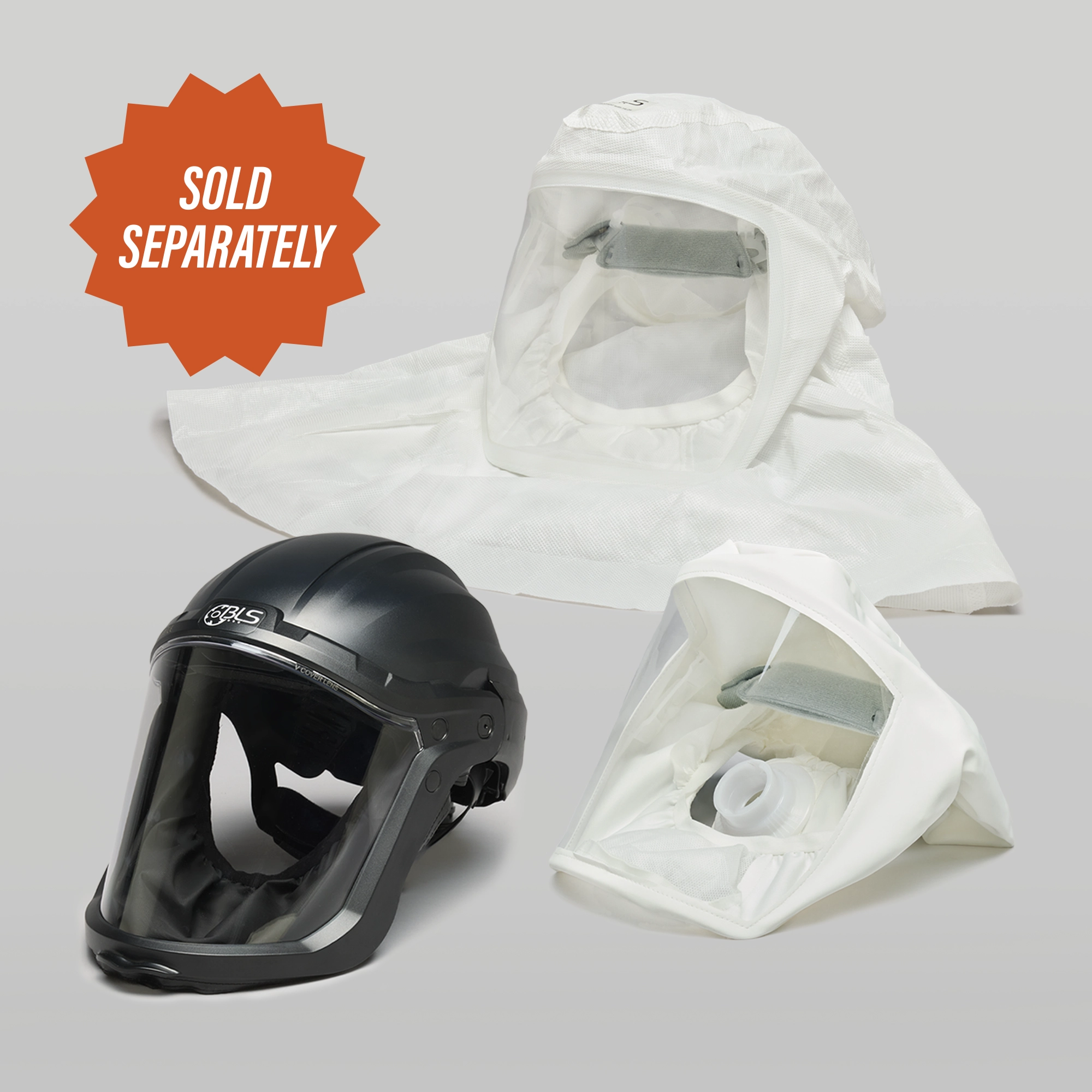

Combination with head PPE (not included in the kit)

Combination with head PPE (not included in the kit)

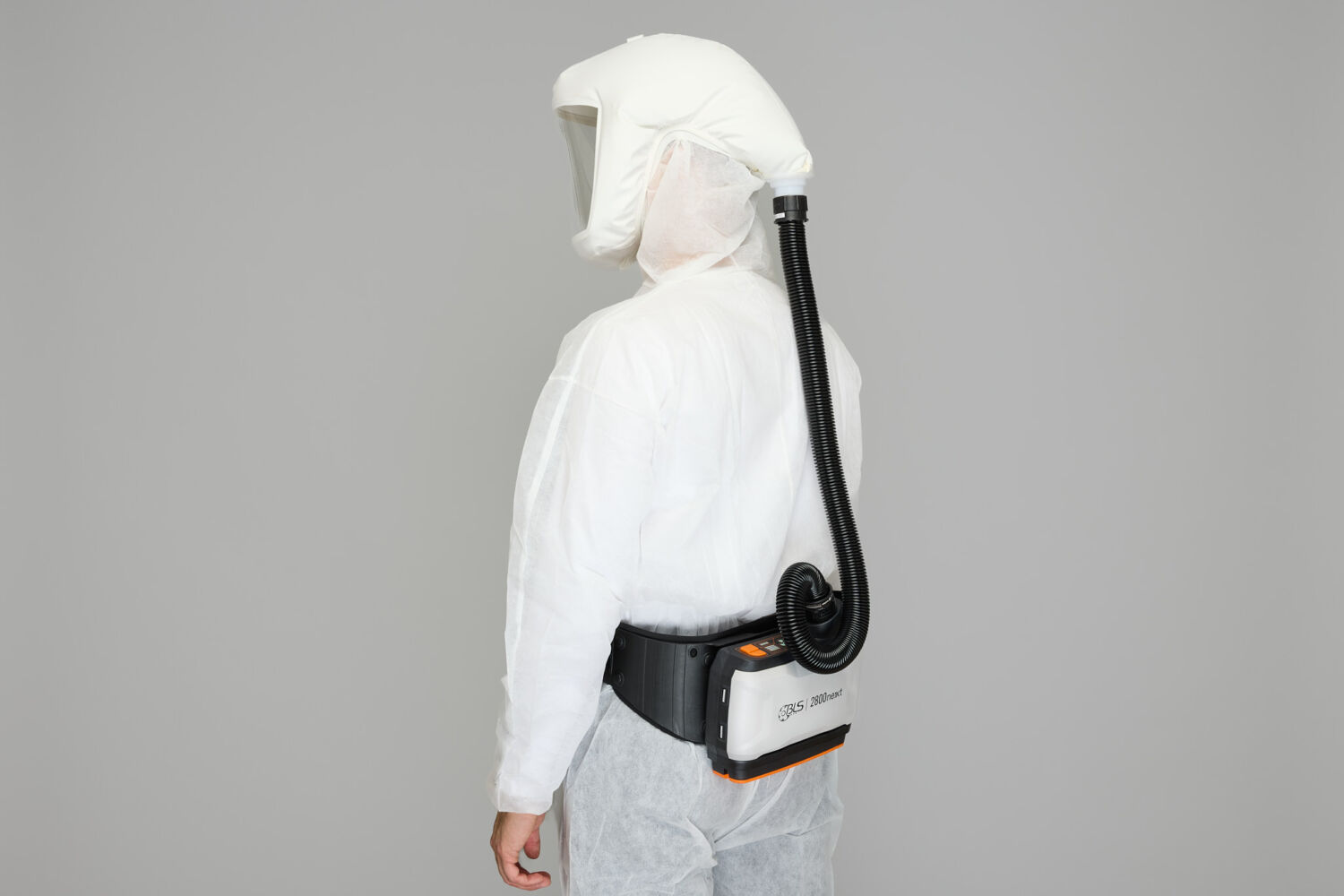

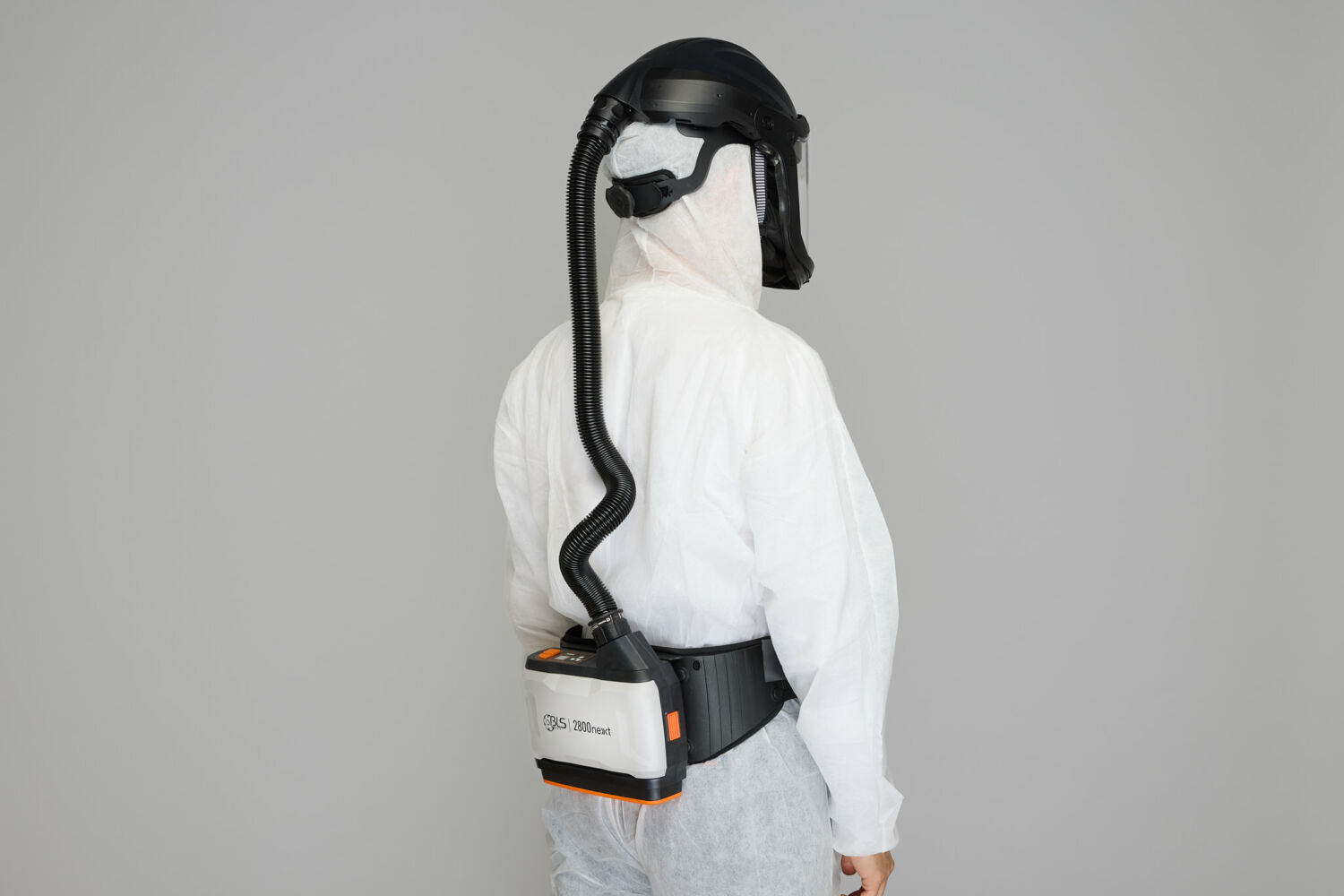

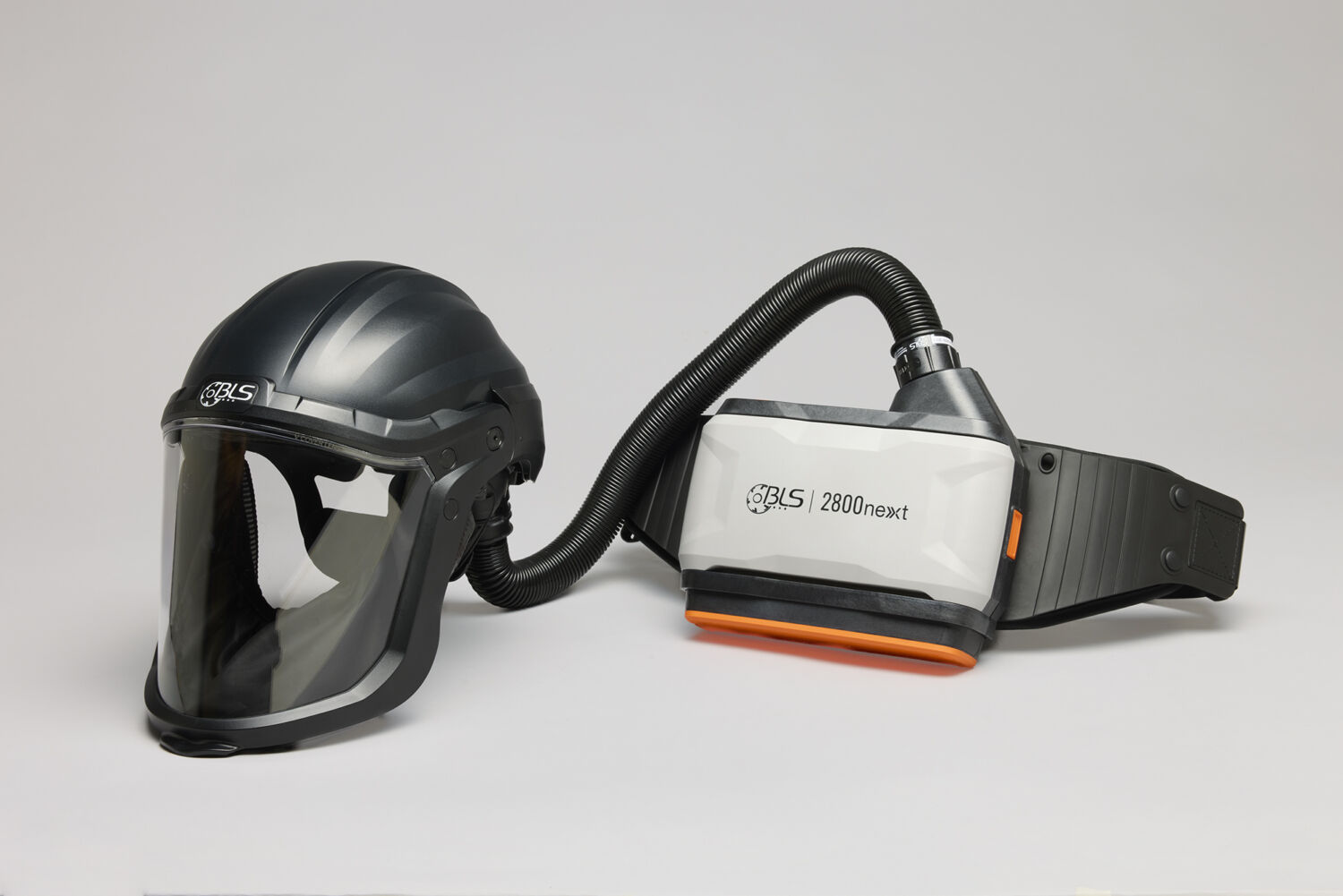

The PAPR must only be used in combination with BLS head protection devices:
• BLS HV25 visor with integrated helmet;
• BLS HS23 and BLS HL24 hoods.
Corrugated hose (not included in the kit)

Corrugated hose (not included in the kit)

To assemble a complete unit, you will need the appropriate corrugated hose:
• EV-04 quick-connection corrugated hose to be used with the BLS HV25 visor only;
• EV-05 corrugated hose with bayonet connection to be used with BLS HS23 and HL24 hoods only.

Fields of use

Fields of use

Like all filtering devices, the BLS 2800next electro-ventilated device cannot be used in areas with oxygen concentrations 23%, nor when the contaminant from which protection is required is odourless. It is suitable for ATEX environments, Zone 1 and Zone 21.

Available accessories

Available accessories

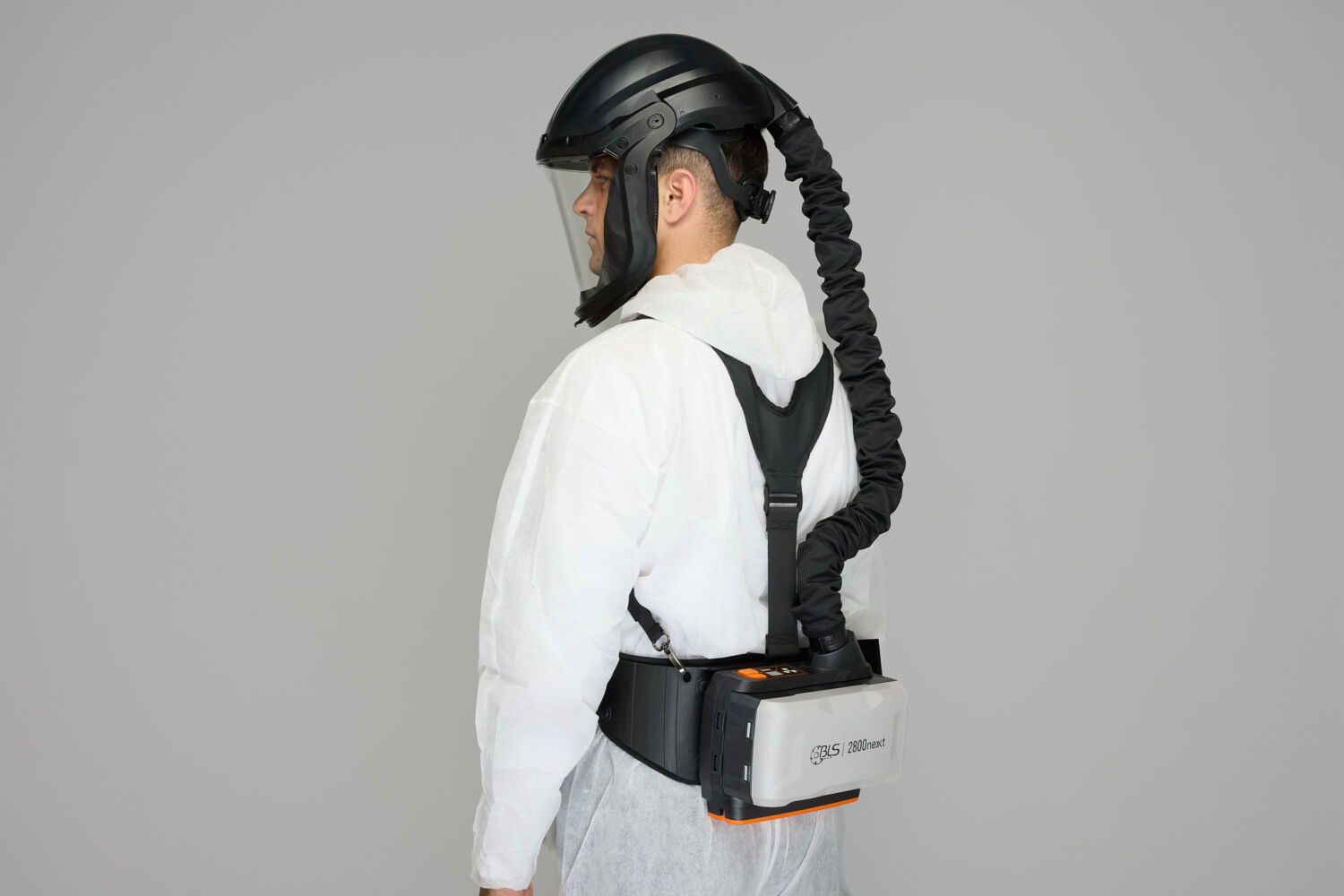

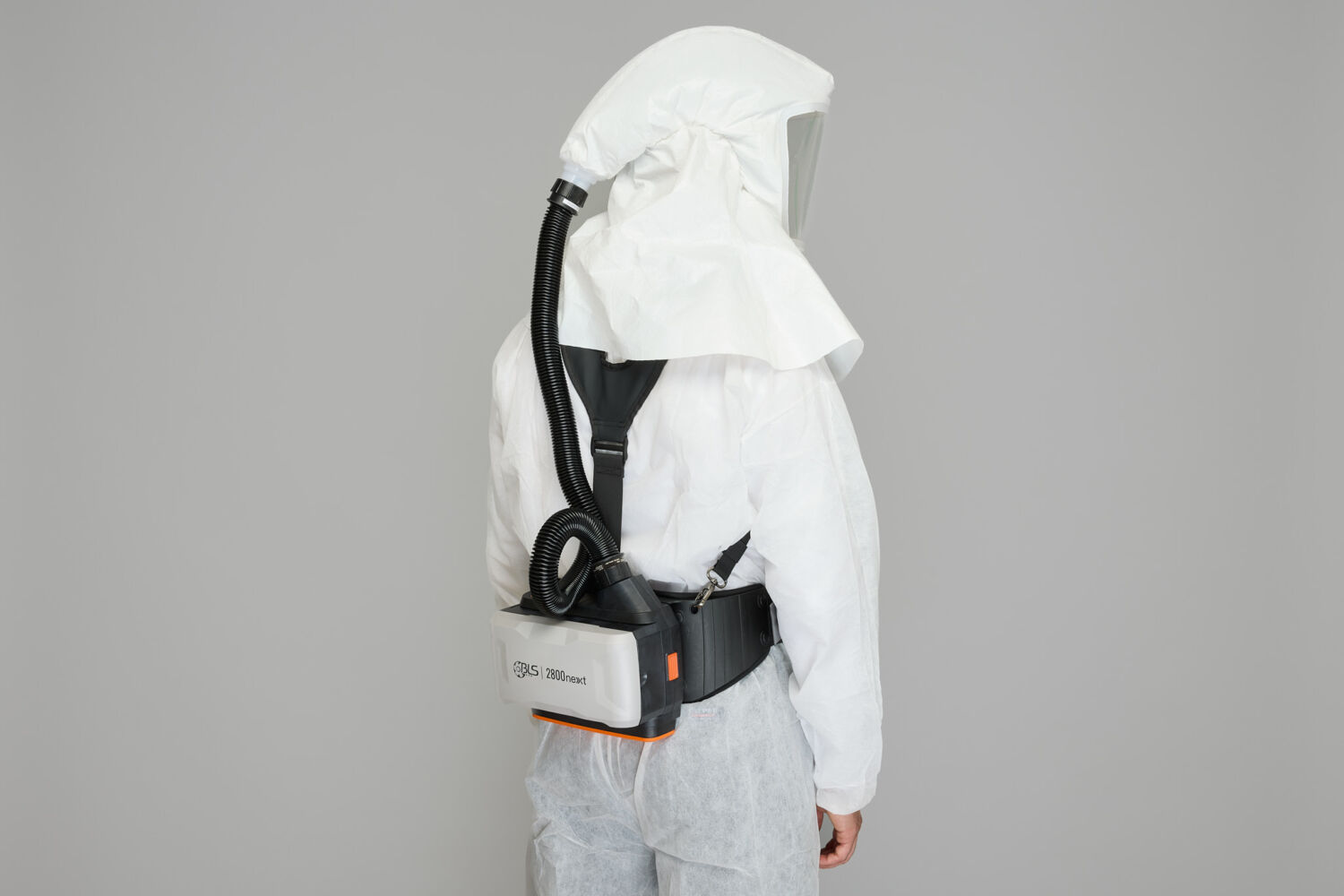

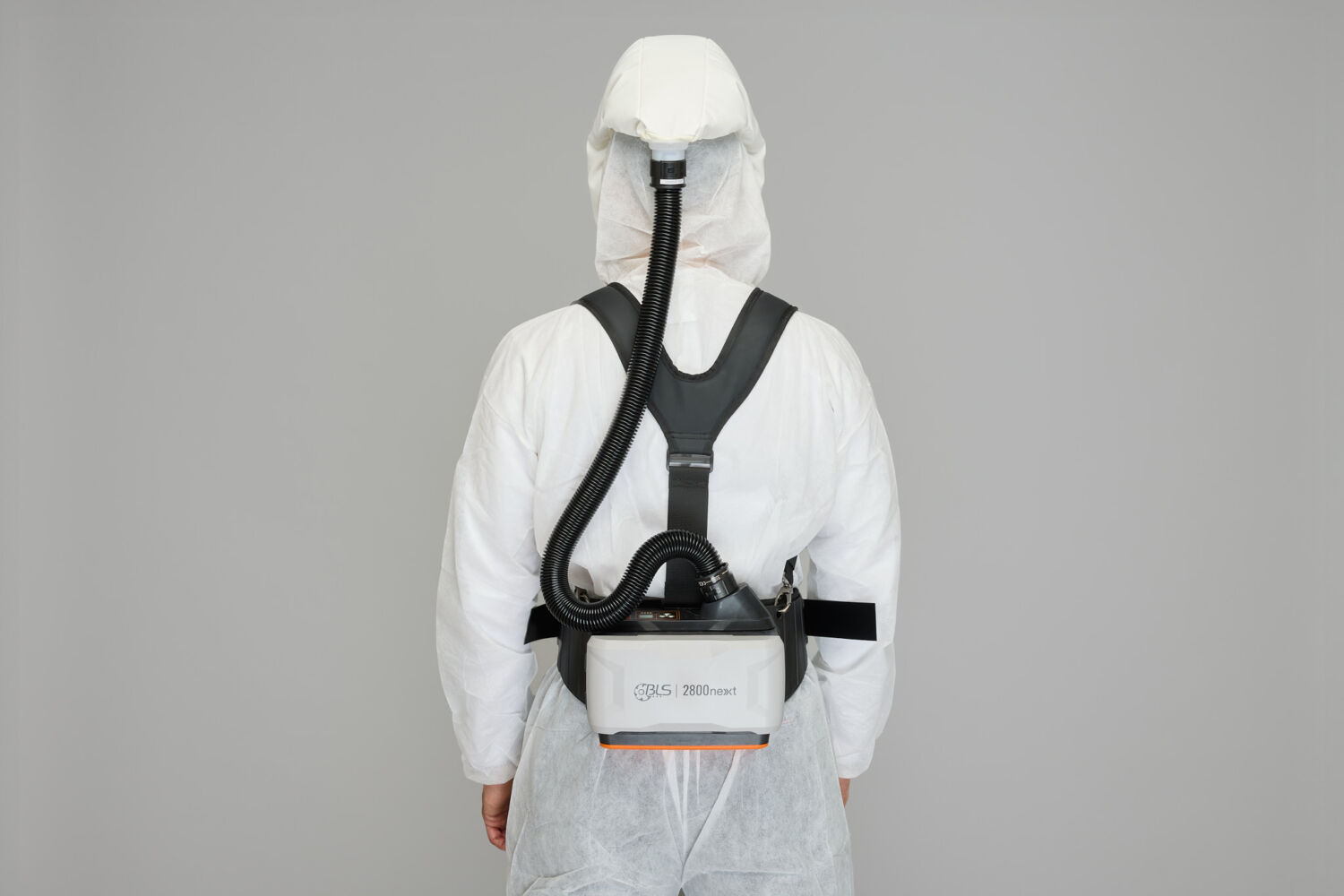

Can be combined with EV-17 support harness, particularly useful in configurations with a combined filter and long-life battery. C250 carrying bag available.

CodeModelDescriptionRegulations

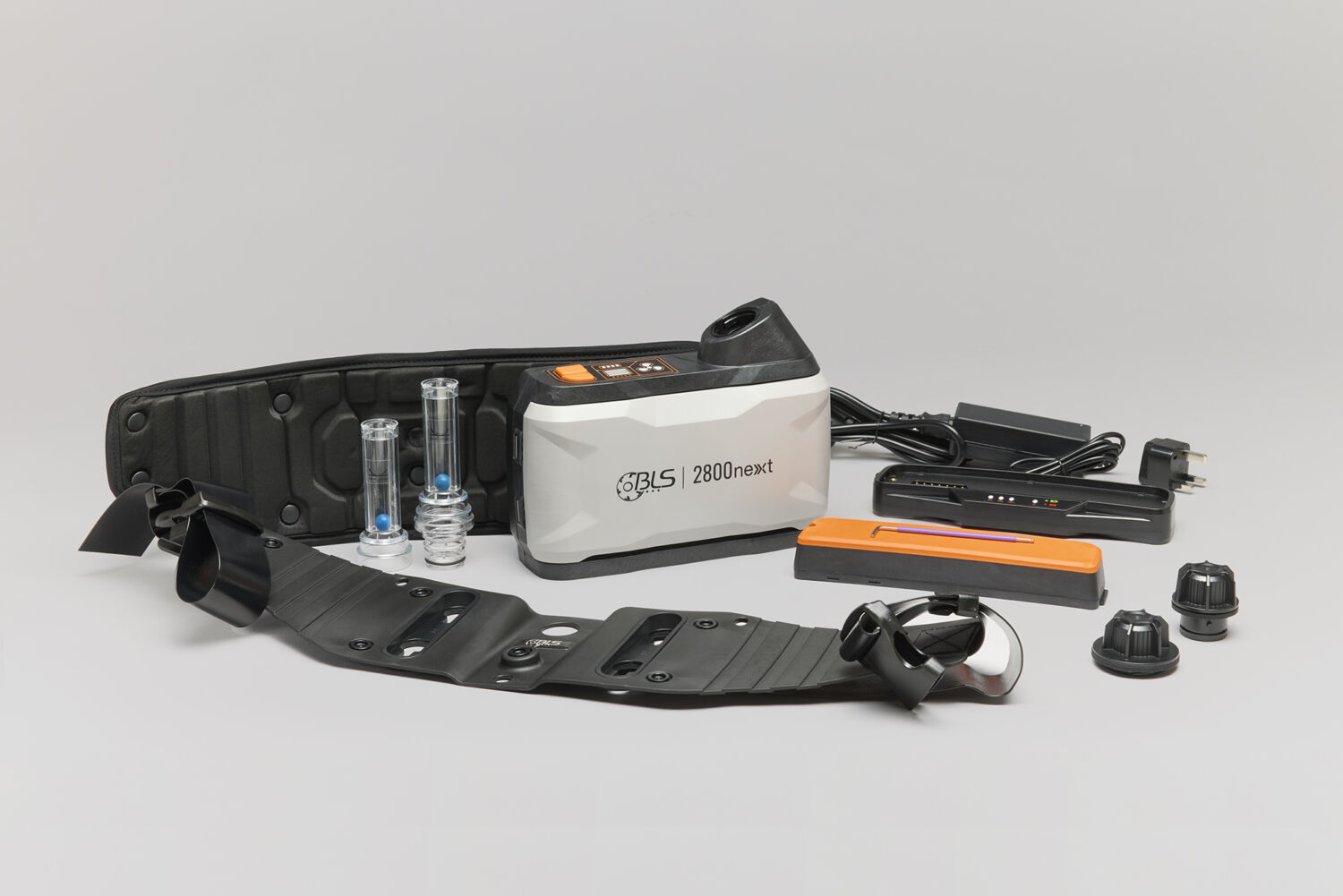

8103020Kit BLS 2800nextIncludes: blower, belt and padding, battery, battery charger and flow indicatorEN 12941
Technical Datasheet
Conformity declaration BLS 2800next + HS23-HL24-HV25 P R
Conformity declaration BLS 2800next + HV25 A2P R
Conformity declaration BLS 2800next + HV25 ABEK1P R
Product Instructions BLS 2800next
Product Instructions BLS 802/ BLS 821/ BLS 822
